GLR-90M High Resolution Ring Laser Strap-down Type Gyrocompass and Inertial Navigation System

Name: GLR90M High Resolution Ring Laser Strapdown Type Gyrocompass and Inertial Navigation System
Brand: THUNDSEA
Price: 1 USD

Brand Name : THUNDSEA

Model Number : GLR-90M

Certification : CCS

Place of Origin : Qingdao

MOQ : one set

Payment Terms : L/C, T/T

Supply Ability : 30 set per month

Delivery Time : 15 Days

Packaging Details : carton box

Setting time : 10 mins(data available)@30 mins(full attitude performance)

Position without aiding : 1 nm/8h,CEP 50

Velocity without aiding : 0.8m/s,1σ

Roll＆pitch without aiding : 0.01 deg,1σ

Heading without aiding : 0.02*sec(φ)deg,1σ

Roll＆pitch with GPS aiding : 0.005deg/h,1σ

Heading with GPS aiding : 0.01deg,1σ

Rotation rate : ±400deg/s

Acceleration : ±15g

Working temp : ﹣40℃~70℃

Storage : ﹣55℃~85℃

Vibration : 0.04g²/hz@20~2000hz

Shock for working condition : 30g@6m/s

Shock for survival : 50g@11m/s

Power Supply : 28V DC

Interface : RS422/RS232/CAN/Ethernet

Size(W×D×H) : 328×280×225mm

Weight : ≤25kg

Power Consumption : ≤35W

MTBF : 52000 hrs

Factory warranty : 3 years

Contact Now

GLR-90M High Resolution Ring Laser Strap-down Type Gyrocompass and Inertial Navigation System

Overview

GLR-90M is a high-performance inertial navigation unit based on strapdown digital ring-laser-gyro technology. GLR-90M uses three single-axis Type-90 ring laser gyroscopes and quartz flexible accelerometers. The strapdown solid state technology ensures it to provide accurate data even in harsh combat situation.

Features

Ring laser gyro technology

Combat Proven

AHRS+INS in a single unit

Anti-disturbance self-alignment while moving

Rich in connections, GPS/GNSS/Speed LOG DVL/USBL input acceptable Configurablenavigationmodes:INS/IntegratedNavigation

Perfectly suited for all types of carriers

Application

Navy ship

Missile or aircraft

Land Army Pointing & Targeting

Submarine

Specifications

Performance	Setting time	10 mins(data available)
	Setting time	30 mins(full attitude performance)
	Position without aiding	1 nm/8h,CEP 50
	Velocity without aiding	0.8m/s,1σ
	Roll＆pitch without aiding	0.01 deg,1σ
	Heading without aiding	0.02*sec(φ)deg,1σ
	Roll＆pitch with GPS aiding	0.005deg/h,1σ
	Heading with GPS aiding	0.01deg,1σ
Range	Rotation rate	±400deg/s
Range	Acceleration	±15g
Environment	Working temp	﹣40℃~70℃
	Storage	﹣55℃~85℃
	Vibration	0.04g²/hz@20~2000hz
	Shock for working condition	30g@6m/s
	Shock for survival	50g@11m/s
Electrical	Power Supply	28V DC
Electrical	Interface	RS422/RS232/CAN/Ethernet
SWaP	Size(W×D×H)	328×280×225mm
	Weight	≤25kg
	Power Consumption	≤35W
Maintenance	MTBF	52000 hrs
Maintenance	Factory warranty	3 years

GLR-90M High Resolution Ring Laser Strap-down Type Gyrocompass and Inertial Navigation System

Product Tags:

0.8m/s inertial guidance system

0.8m/s inertial measurement unit

0.8m/s Laser inertial reference system

Buy cheap GLR-90M High Resolution Ring Laser Strap-down Type Gyrocompass and Inertial Navigation System product

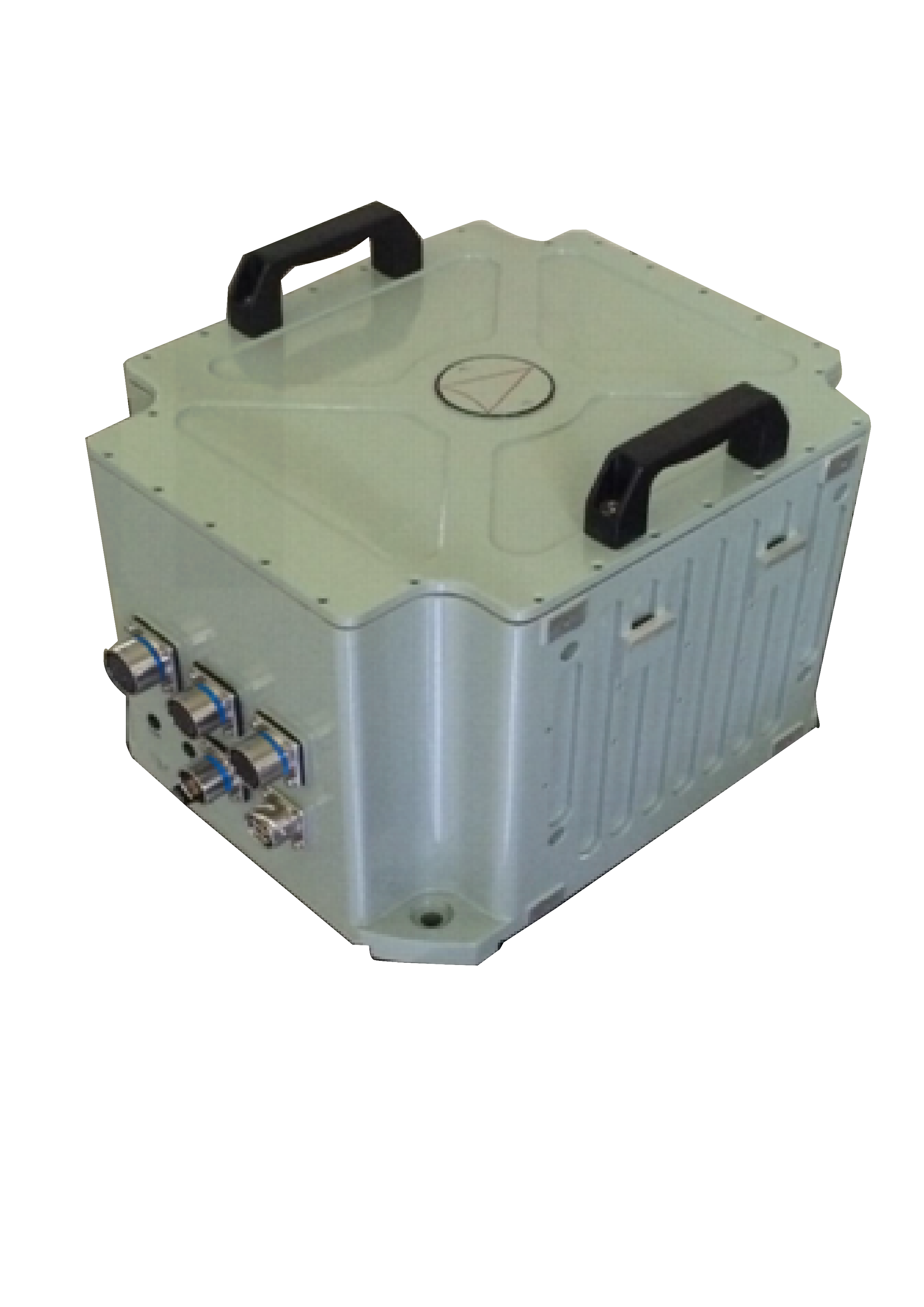

GLR-90M High Resolution Ring Laser Strap-down Type Gyrocompass and Inertial Navigation System Images
