Furuno F3 Wassp Wideband Chirp Multi Beam Echo Sounder Easy To Use With Outstanding Performance

Name: Furuno F3 Wassp Wideband Chirp Multi Beam Echo Sounder Easy To Use With Outstanding Performance
Brand: FURUNO
Price: 1 USD

Buy cheap Furuno F3 Wassp Wideband Chirp Multi Beam Echo Sounder Easy To Use With Outstanding Performance product

Brand Name : FURUNO

Model Number : F3 Series

Certification : CCS

Place of Origin : japan

MOQ : one set

Payment Terms : L/C, T/T

Supply Ability : 30 set per month

Delivery Time : 15 Days

Packaging Details : carton box

TX Frequency : Wide band F3/F3i: 160 kHz F3L/F3Li: 80 kHz

Beam Width : 120° x 4° (Athwartships x Fore-aft) PS: 4.4°

Interface NMEA0183 : GGA, GGK, GLL, HDG, HDM, HDT, HVE, PASHR, PTNL PFEC, RMC, RCD, TSS1, ZDA

Display Display Mode : Bathymetry, Sonar polar view, Sounder (single, triple & quint beam) (Licensing options) Backscatter, Open Client Support, Water Column Targets, Uncorrected Data, XYZ export, Sidescan, RTK tides, other export formats* * available in 2017

OS : Windows 8.1, 10

CPU : 2 Ghz, 4 Cores/4 Threads

Memory : 8 GB (Min. 4 GB)

Screen Resolution : Full HD 1920 x 1080 (Min. XGA 1024 x 768)

Temperature : 0°C to +50°C (storage:-20°C to +85°C)

Relative humidity : IEC60945, 93 % or less at +40°C

Contact Now

FURUNO F3 Series WASSP Multi Beam Sonar Wideband CHIRP Technology With Outstanding Performance

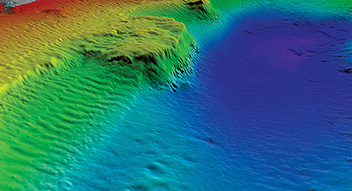

Generate your own personal Multibeam Chart

The F3 series is set to revolutionise inshore fisheries with its Wideband CHIRP technology. Scanning a 120 degrees swath port to starboard and using 224 beams, the F3 series delivers each and every time. By using advanced signal processing, you get a complete picture of seafloor bathymetry with ease

Furuno F3 Wassp Wideband Chirp Multi Beam Echo Sounder Easy To Use With Outstanding Performance

WASSP 3D

- Capability to save chart into the CDX software
- TIMEZERO compatible with optional licence

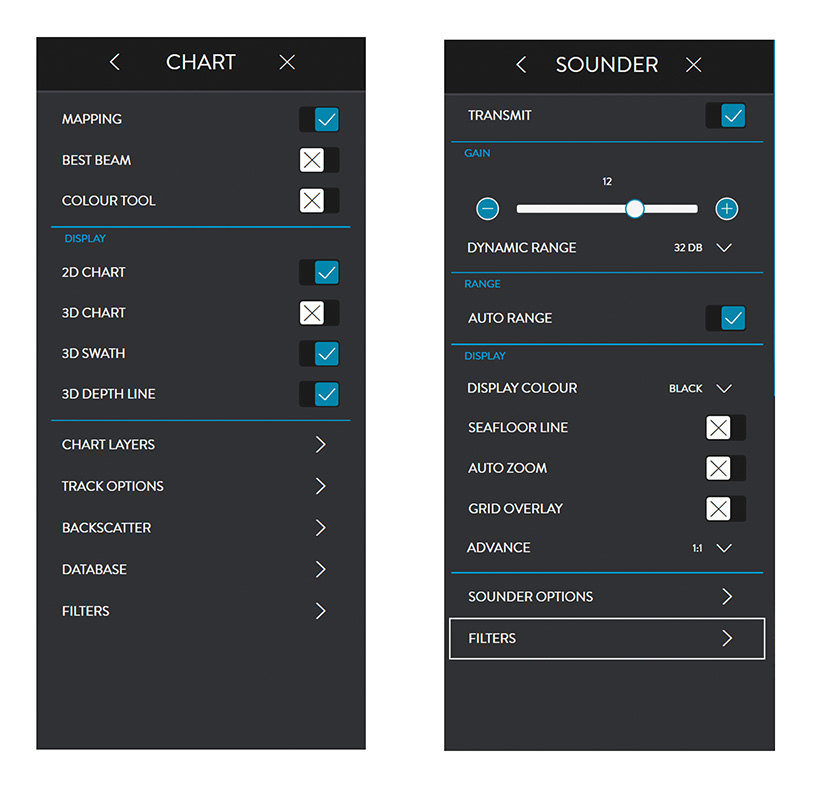

New easy-to-use interface

The F3 series inctoduce a new simplified software “WASSP CDX” for control, visualisation and data management while still providing a comprehensive set of functions to meet the most demanding fishing requirements.
Cost-effective solution for multiple applications
Choose your own functions with new licensing options
- Various presentations

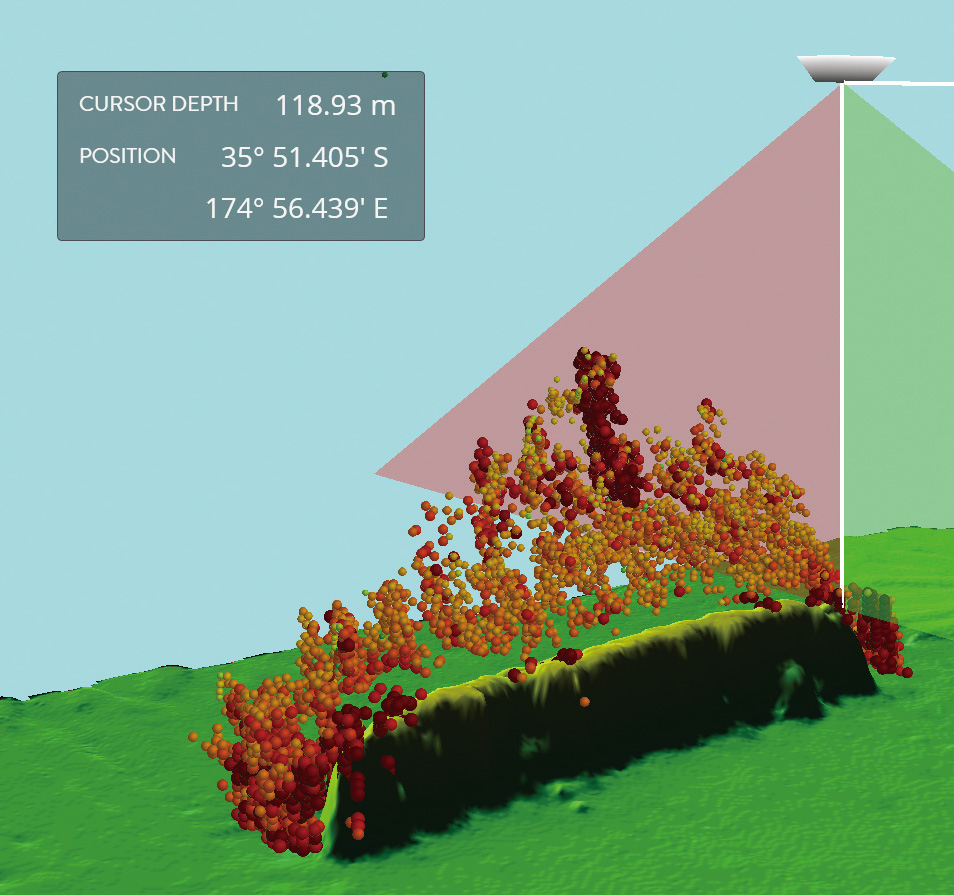

  Fish Density Overlay

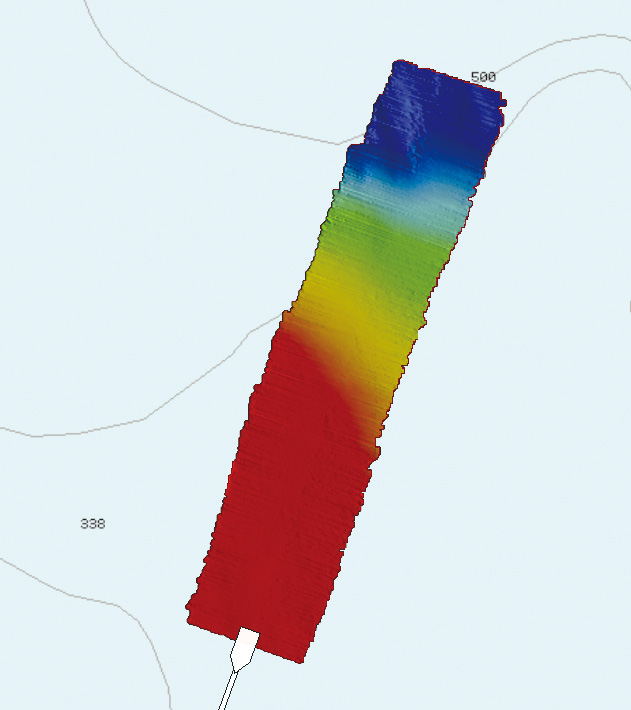

  2D Mapping to 500 m

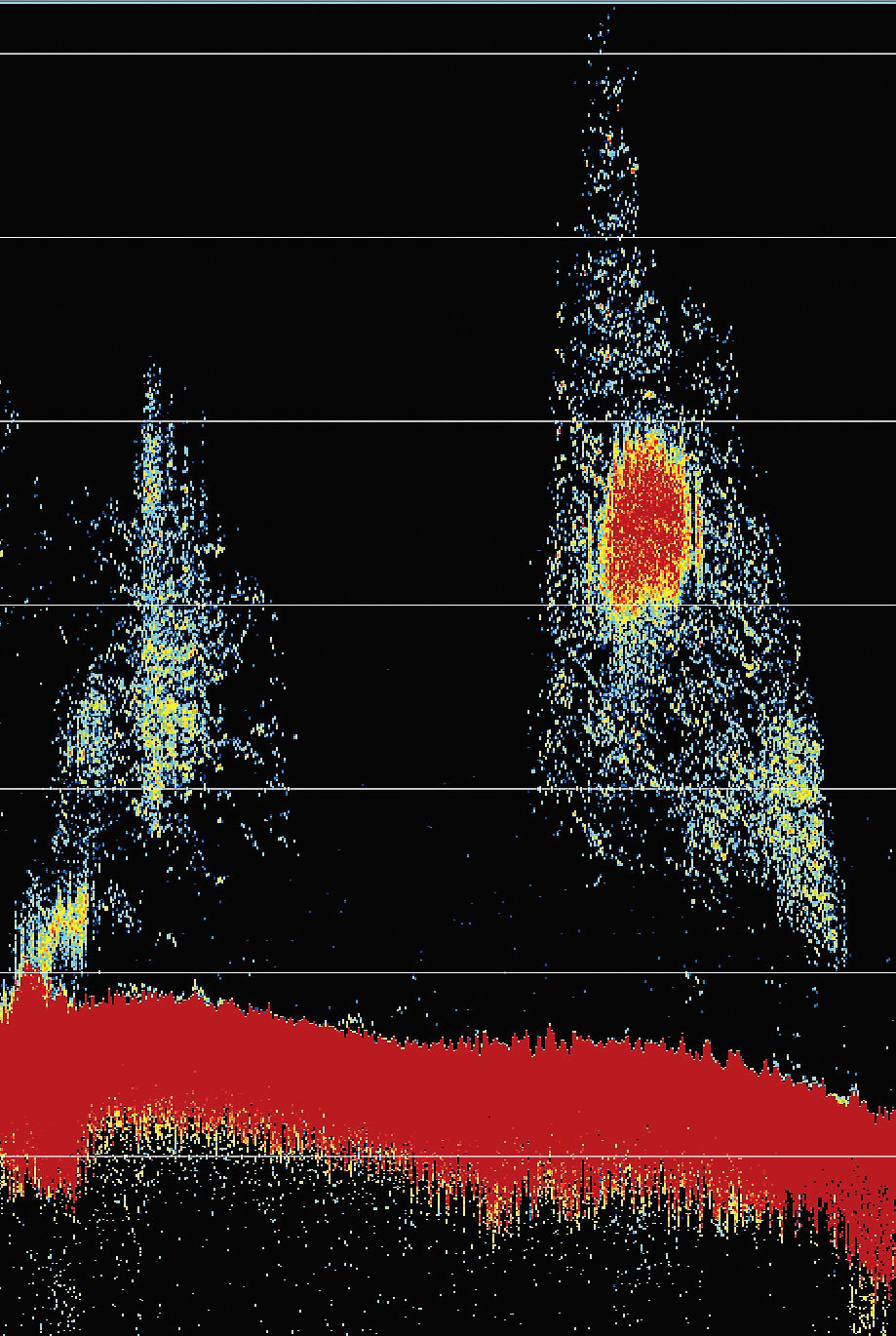

  Sounder (60 kHz)

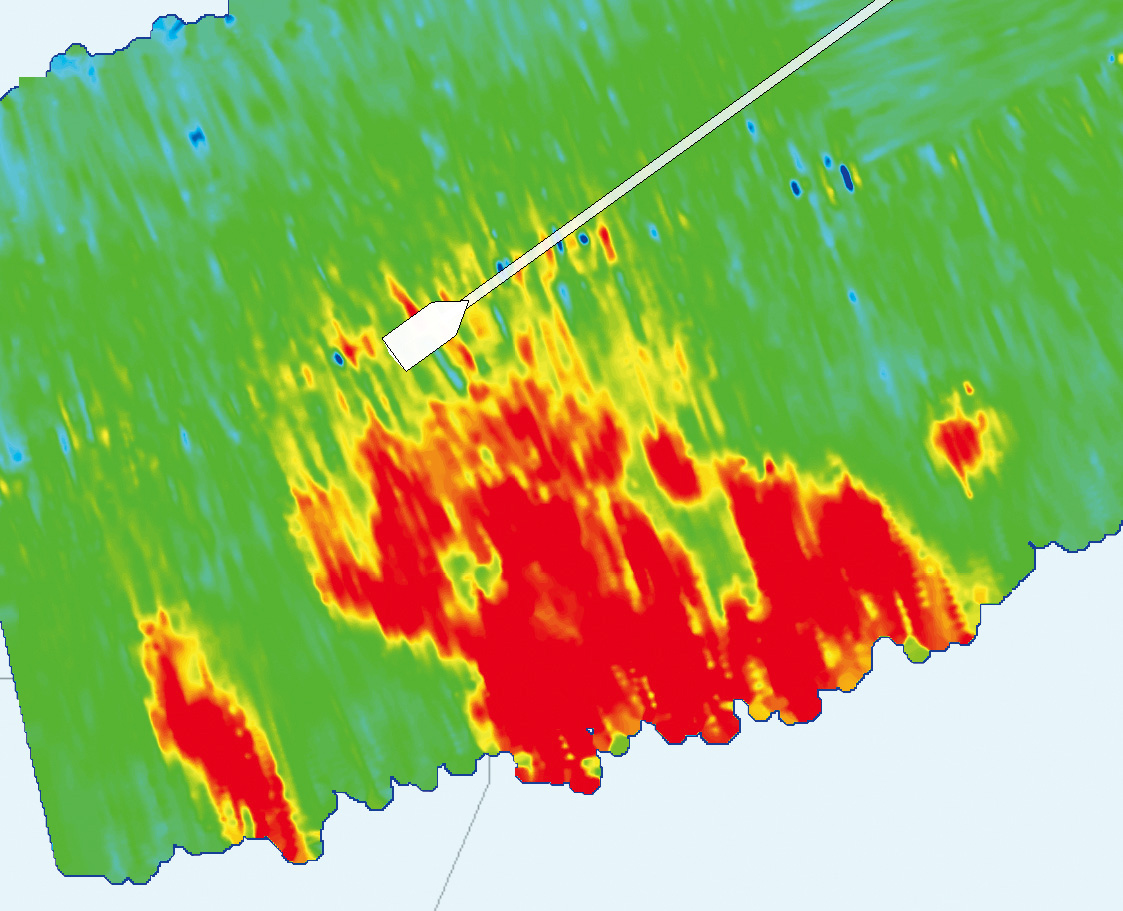

  Backscatter (Bottom Hardness) at 200 m

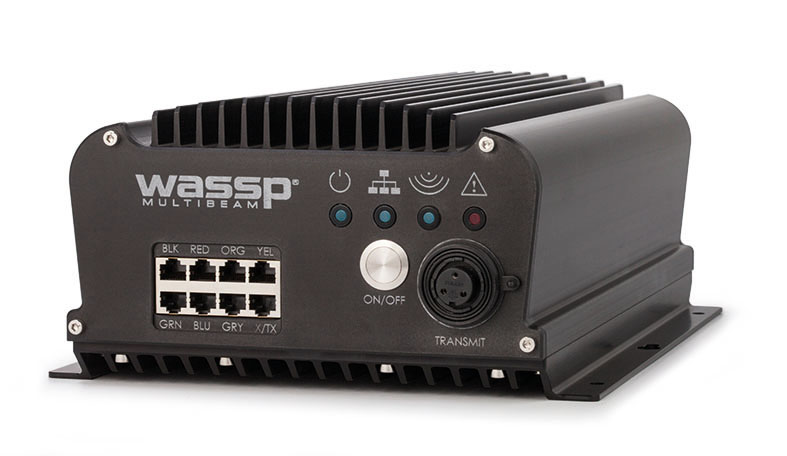

- All-in-one DRX transceiver, incredibly versatile and ready for the next technology advances

  This innovative all-in-one “BlackBox” is not just a robust hardware platform but also introduces cutting-edge technical innovations and incredible versatility for finding your catch. This opens countless new possibilities for your operations.

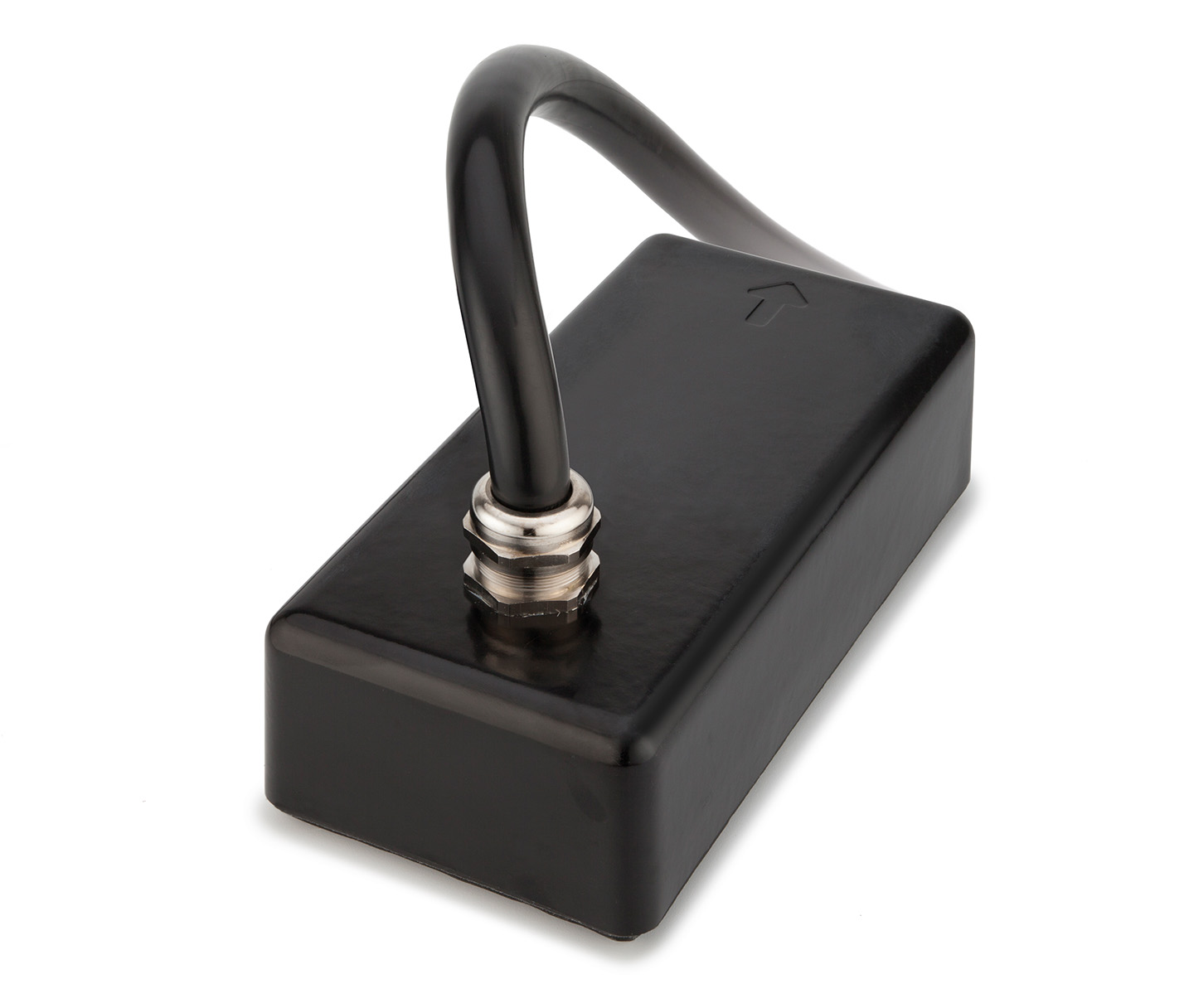

- WASSP transducer

  The WASSP sonar transducer is available in 2 frequencies.

  - 136-184 kHz Wideband (160 kHz center)
  - 68-92 kHz Wideband (80 kHz center)
Specifications

General

TX Frequency

Wide band
F3/F3i: 160 kHz
F3L/F3Li: 80 kHz

Detection Range

F3: 200 m* (Side Beam Best Performance)
400 m* (Main Beam Directly Under Boat)
F3L: 450 m* (Side Beam Best Performance)
900 m* (Main Beam Directly Under Boat)

*Depth capability subject to a variety of external factors.

Beam Width

120° x 4° (Athwartships x Fore-aft)
PS: 4.4°

Interface

NMEA0183

GGA, GGK, GLL, HDG, HDM, HDT, HVE, PASHR, PTNL PFEC, RMC, RCD, TSS1, ZDA

Display

Display Mode

Bathymetry, Sonar polar view, Sounder (single, triple & quint beam)

(Licensing options)
Backscatter, Open Client Support, Water Column Targets, Uncorrected Data, XYZ export, Sidescan, RTK tides,
other export formats*
* available in 2017

Minimum PC Specs

OS

Windows 8.1, 10

CPU

2 Ghz, 4 Cores/4 Threads

Memory

8 GB (Min. 4 GB)

Screen Resolution

Full HD 1920 x 1080 (Min. XGA 1024 x 768)

Environment

Temperature

0°C to +50°C (storage:-20°C to +85°C)

Relative humidity

IEC60945, 93 % or less at +40°C

Waterproofing

IP53, Bulkhead mounted (IP67 option available)

Vibration

IEC60945 Ed.4

Power Supply

Transceiver Unit

9 to 32 VDC

Others

Size

Transceiver Unit: 216(W) x 260 (D) x 205 (H) mm
Transducer:
WMB-160 (160 kHz) ; 98 (H) x 330 (W) x 168 (D) mm
WMB-80 (80 kHz); 133 (H) x 533 (W) x 340 (D) mm

Weight

Transceiver Unit: 8.3 kg
Transducer:
WMB-160 (160 kHz) ; 15 kg
WMB-80 (80 kHz); 39 kg
